hapces_timer_app
Overview
HAPCES Timer App is an Android app demonstrating consuming the HAPCES CCB API to allow timed control of home automation devices.
Features
- A timer can be saved to the cloud via the user’s account (created before opening the Timer screen)
- Timer label and duration can be changed in Edit Timer screen
- Multiple devices can be linked to a timer in the Choose Devices screen
- All devices linked to a timer can be started/stopped through timed control via the Timer screen (e.g., starting the timer will turn on all devices)
- The state of all linked devices can be viewed in the Devices List screen
- Login details for the home automation platform can be configured in the Settings screen
- Mock data via CCB API can be toggled in the Settings screen
- Error handling informs the user of any problems (e.g., when fetching devices to display)
Supported platforms
Due to time constraints, the CCB API currently only provides an openhabadapter (supporting the openhab home automation platform) hence the app currently only supports the openhab platform. However, if CCB API releases adapters for other platforms, these may be added to the app to enable timed control of devices associated with those platforms.
Supported devices
Due to time constraints, only switch devices are currently supported.
Video Demonstration
Click here for mp4 video file.

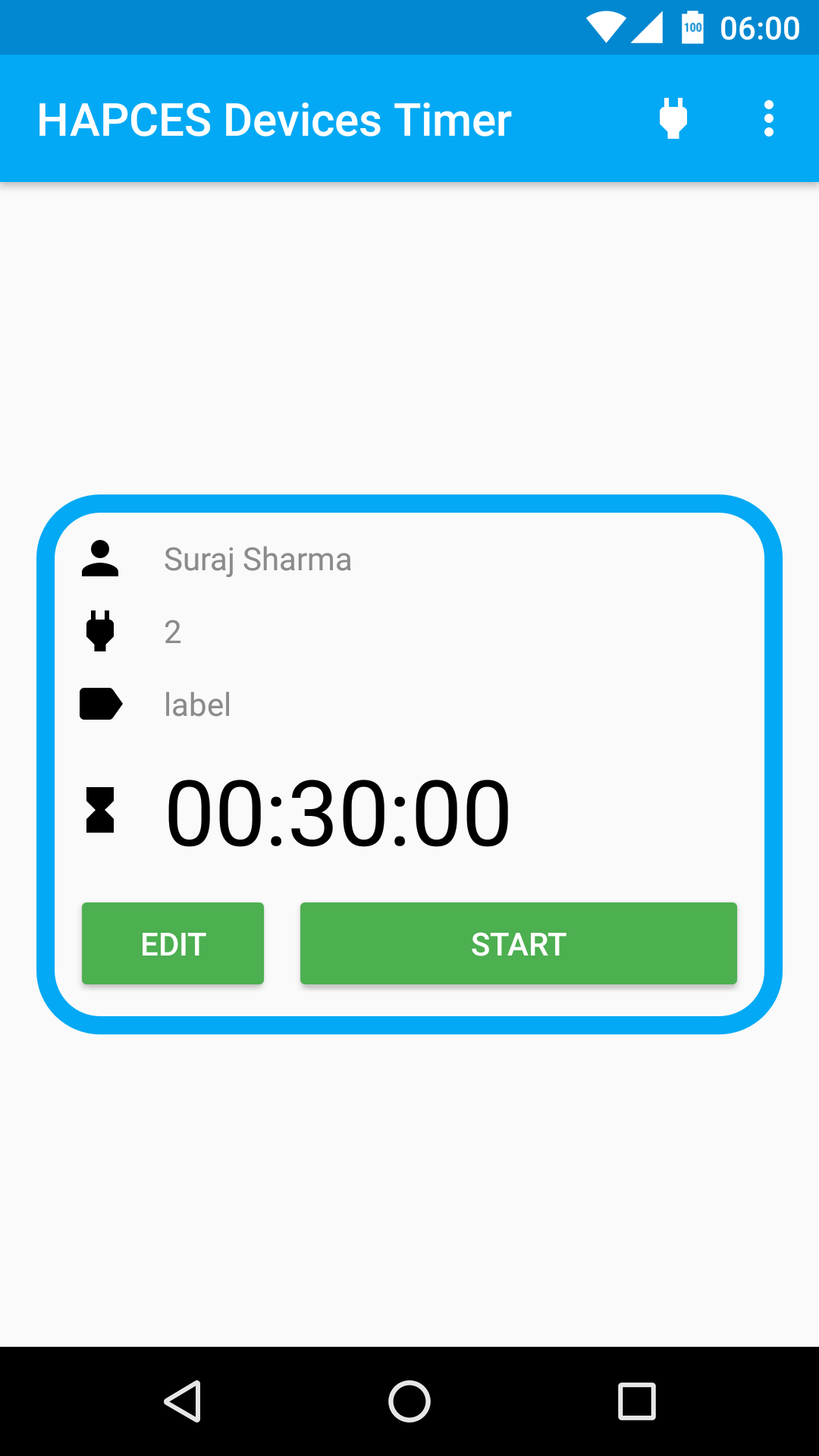

Screens
Project Structure
hapces_timer_app: this project
| README.md: this file
|
+---HapcesTimerApp: Android project folder
| | build.gradle: build settings for all modules
| |
| \---app
| | build.gradle: build settings for single module
| |
| \---src: source code
| \---main
| | AndroidManifest.xml: app declarations (e.g., permissions, etc.)
| |
| +---.../hapcestimerapp
| | |
| | +---db: database related components
| | | | DbHelper.java: helper class for managing database
| | | |
| | | \---models: models used with database
| | | LinkedDevice.kt: represents
| | | TimerData.java
| | | UserData.java
| | |
| | +---net: network related components
| | | | NetHelper.java: helper class for managing network features
| | | |
| | | +---ccbapiservice: ccb api related components
| | | | | RetrofitClient.java: manages retrofit api implementations
| | | | |
| | | | +---models: models used with ccb api
| | | | | CcbDevice.java
| | | | | CcbFeature.java
| | | | | CcbState.kt
| | | | | TimerDevice.kt
| | | | |
| | | | \---openhabadapter: ccb openhab integration components
| | | | CcbOpenhabApi.java: ccb endpoints used by this app
| | | | CcbOpenhabApiHelper.java: helper class for ccb openhab api
| | | | CcbOpenhabClient.java: retrofit implementation for ccb api
| | | |
| | | \---tasks: network task related components
| | | CommandStatesTask.java: sends commands to CcbStates
| | | FetchDevicesTask.java: fetches CcbDevices as TimerDevices
| | | FetchStatesTask.java: fetches CcbStates
| | | PingCcbTask.java: checks connection with ccb api
| | | TaskResultListener.java: listens for task result/error
| | |
| | +---screens: user interface related components
| | | | DialogHelper.java: helper class for managing dialogs
| | | | DurPickerDialog.java: manages duration picker dialog
| | | | EditTimerActivity.java: manages edit timer screen
| | | | MainActivity.java: manages login before loading timer screen
| | | | SettingsActivity.java: manages settings screen
| | | | TimerListActivity.java: manages timer screen
| | | |
| | | +---choosedevices: components for choose devices screen
| | | | ChooseDeviceAdapter.java: manages list items
| | | | ChooseDevicesActivity.java: manages choose devices screen
| | | |
| | | \---deviceslist: components for devices list screen
| | | DeviceListAdapter.java: manages list items
| | | DevicesListActivity.java: manages devices list screen
| | |
| | \---timerservice: components for managing timer
| | | TimerService.java: manages StateTimer
| | |
| | +---noti: notification related components
| | | NotiChannelHelper.java: helper class for notification channels
| | | NotiHelper.java: helper class for managing notifications
| | |
| | \---timers: timer related components
| | StartStopTimer.java: simple start/stop countdown timer
| | StateTimer.java: timer that controls CcbStates on start/stop
| |
| \---res: resources
| +---drawable: image resources as xml (e.g., menu icons)
| | ...
| |
| +---layout: layout components
| | ...
| | elv_group_header.xml: header view for group in list
| | elv_item_choose_device.xml: list item view for choose devices
| | elv_item_device_list.xml: list item view for devices list
| | pref_et_password.xml: custom layout allows password mask/toggle
| |
| +---menu: menu layout components
| | ...
| |
| +---values
| | colors.xml: app color values
| | dimens.xml: layout dimension values
| | strings.xml: app strings
| | styles.xml: app styles
| |
| \---xml
| settings_preferences.xml: layout for settings preferences
|
+---readmes: readme files for each screen
| ...
|
\---screenshots: screenshots for each screen's readme
...
